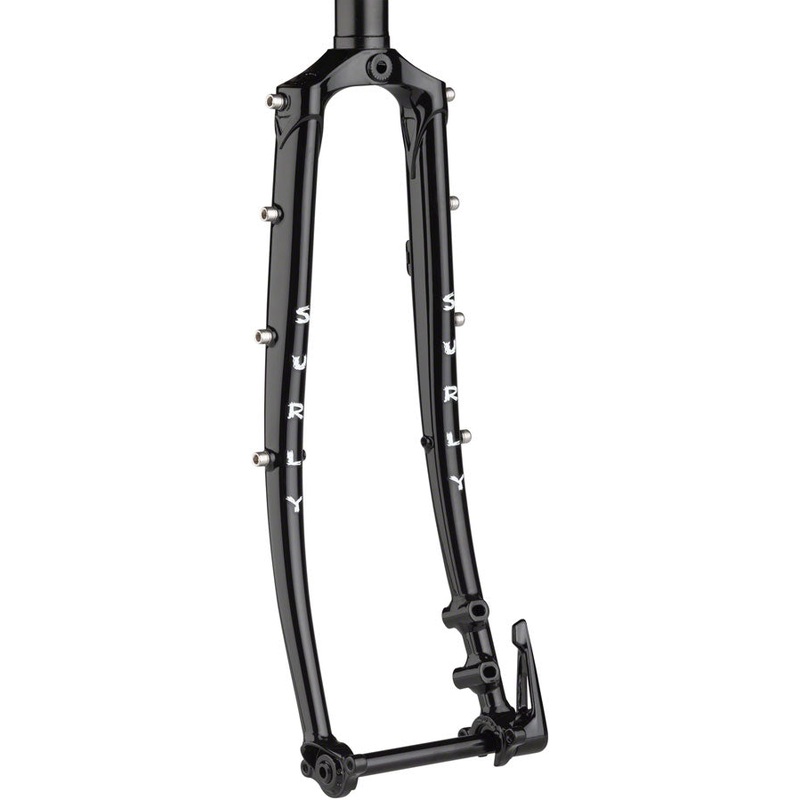

Surly Disc Trucker Fork – 26″ 1-1/8″ Straight 100×12 mm Thru-Axle Steel Disc Black. Equipped to make touring the wide worlds paved roads a little more comfortable the Disc Trucker Thru-Axle Fork has three-pack mounts on each blade to give you space for racks fenders and additional cargo solutions. Available in 26 and 700c wheel sizes it offers dynamo routing a 1-1/8 threadless steerer tube and compatibility with 12mm captured thru-axles and flat-mount disc brakes.
100% Chromoly steel construction curved blades powder coated
Versatile three-pack mounts on the fork blades plus routing for Dynamo hubs
Completely redesigned fork ends to accommodate 12mm captured thru-axles and flat-mount disc brakes
Clearance for a 26 x 2.1″ tire with or without fenders or 700c x 47mm with or without fenders
Axle-to-crown height: 376mm for 26″ 390mm for 700c
Note: The Disc Trucker Thru-Axle Fork is compatible with the second-generation Disc Trucker model first released in 2020 (frames featuring rear thru-axle dropouts).
Steerer Type |
Straight |
Max Rotor Size (Fork) |
160 |
Color |
Black |
Brake Mount (Fork) |
Flat Mount 160 |
Crown Race |
30 |
Wheel Size |
26″ |
Offset |
45 |
Material |
Steel |
Defined Color |
Black |
Maximum Tire Clearance (Fork) |
26×2.1 |
Axle to Crown Length |
376 |
Front Axle |
12mm Thru x 100mm |
Front Hub Spacing (mm) |
100 |
S.H.I.S. Stem Clamp Diameter |
28.6 |
Steerer Tube Length (mm) |
400 |
