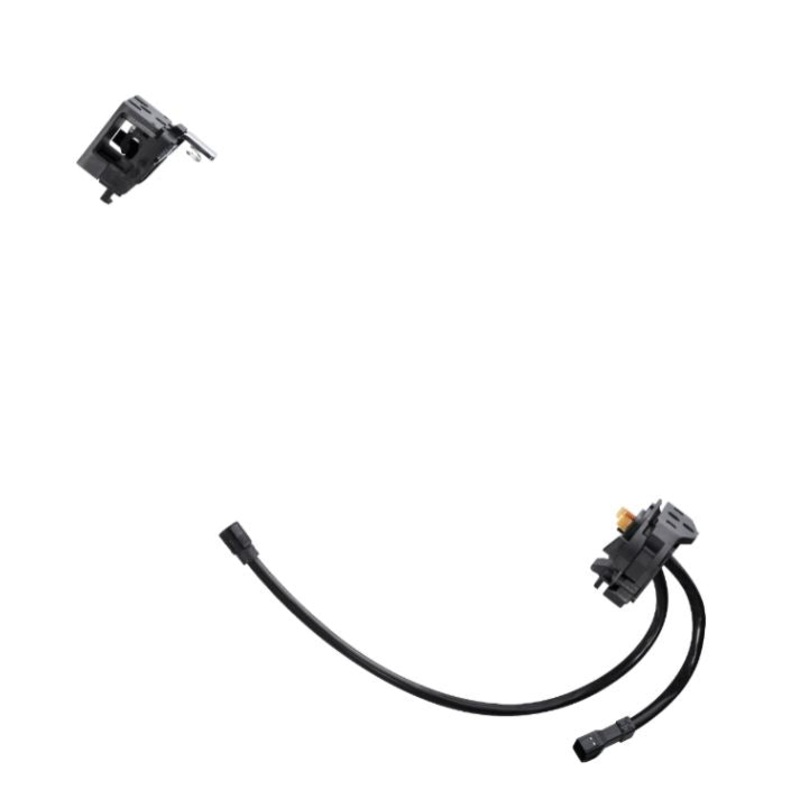

Shimano Battery Mount – BM-E8031

SHIMANO STEPS – Integrated Type Battery Mount – Down Tube Position – Without Key Unit Mount

For a refined and integrated aesthetic, SHIMANO STEPS BM-E8031 battery mount integrates into the downtube of compatible E-BIKE frames.

FEATURES:

• High level of water-resistant performance (IPX5)
• More compact size
• Improved usability of double ratchet removal
• Capacity: 504 Wh (36 V, 14 Ah)

SPECIFICATIONS:

• MODEL NO BM-E8031-A
• SERIES SHIMANO STEPS E6100 Series
• Color Standard
• Average weight 0.33 (Power cable: 250 mm) 0.34 (Power cable: 400 mm)
• Position Integrated
• Compatible battery BT-E8035 BT-E8035-L BT-E8036
• Power cable
• Power cable length (mm)_250
• Power cable length (mm)_400
• Cable length to EW-CP100 (mm) 200
• Compatible tool TL-BME04 (for BT-E8035) TL-BME05 (for BT-E8035-L/BT-E8036)
• Connect to EW-CP100
