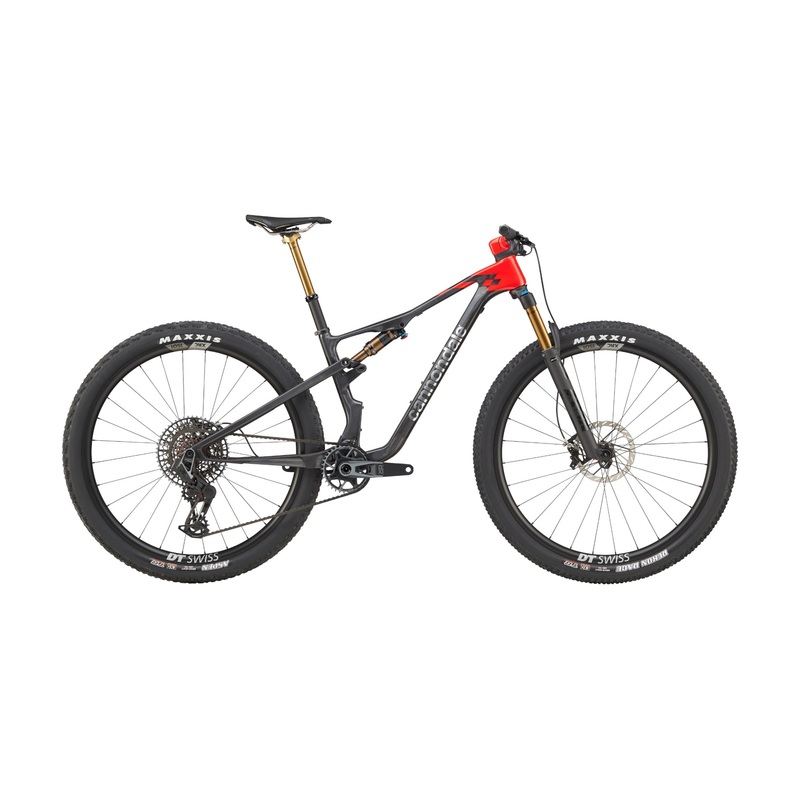

Thrill ride. With the most advanced XC suspension and geometry, and rowdy-ready spec, the new Scalpel redefines cross-country speed again.
FEATURES:
- Travel Advisory: Not just more travel better travel. Thanks to the magic of our FlexPivot kinematics and Proportional Response suspension, Scalpels 120mm of travel delivers unreal traction, more control, and a hell of a lot more fun with all the efficiency and responsiveness youd expect from a World Cup race rig.
- Devilishly Fast: Speed starts with the geometry, and Scalpels got the hole shot. It has a slack 66.6 head tube angle, a steeper 75.5 seat tube angle, and chainstays that get longer as the frames get bigger to keep the rider more balanced between the wheels. The result? More power and traction on the climbs, more pinpoint control in the corners, and a whole new level of confidence at speed.
- The Beauty of Speed: This aint no fashion statement. This is pure, purposeful design. Every element of the Scalpels form is driven by function above all kinematics, weight, stiffness, and capability. Features drive the shape, instead of the shape constraining the features. And fast looks good.
SPECS:
| Frame |
Scalpel, Series 1 Carbon construction, 120mm travel, Proportional Response Suspension and Geometry, FlexPivot Chainstay, full internal cable routing, 73mm BSA, 1.5″ headtube with 1-1/8″ upper reducer/internal cable guide, 148x12mm thru axle, 55mm chainline, UDH, post-mount disc 160mm native |
| Fork |
Fox Float Factory 34 SC, Kashima, 120mm, 15x110mm thru-axle, tapered steerer, 44mm offset |
| Rear Shock |
Fox Float SL Factory EVOL SV, Kashima, 190×45, custom tune |
| Rims/Wheels |
DT Swiss XCR 1501 Spline One, carbon, 30mm inner width, hookless, TSS tubeless ready |
| Hubs |
DT Swiss 240 15×110, 6-bolt (F) / 240 Ratchet EXP 36, 6-bolt, XD driver (R) |
| Spokes |
DT Competition Race, straight pull |
| Tires |
(F) Maxxis Rekon Race WT, 29×2.4″, EXO Protection, tubeless ready / (R) Maxxis Aspen WT, 29×2.4″, EXO Protection, tubeless ready |
| Crankset |
SRAM XO T-Type |
| Chainrings |
34T |
| Chain Guide |
N/A |
| Bottom Bracket |
SRAM DUB BSA 73mm MTB Wide |
| Chain |
SRAM XO, T-Type, 12-speed |
| Rear Derailleur |
SRAM XO Eagle AXS, T-Type |
| Cassette/Rear Cogs |
SRAM XO Eagle, 10-52, T-Type, 12-speed |
| Shifters |
SRAM AXS T-Type Pod Controller |
| Handlebars |
SystemBar XC-One Flat, carbon, integrated bar/stem, internal cable routing, 5 upsweep, 8 backsweep, 760mm width, -6 stem, 1-1/8″ clamp |
| Grips |
Cannondale XC Silicone |
| Stem |
SystemBar XC-One Flat, carbon integrated bar/stem |
| Brakes |
SRAM Level Silver Stealth, 4-piston hydraulic disc, SRAM HS2 180/160mm rotors |
| Pedals |
Sold Separately |
| Saddle |
Prologo Dimension NDR, Tirox rails |
| Seat Post |
Fox Transfer SL Factory, Kashima, 31.6, 125mm (S), 150mm (M-XL) |
