ALL THE TRAVEL WITH 27.5″ WHEELS

Load up the van, hit the road, climb a mountain, hammer it back down, huck the gap, throw the bike back in the van, drive to the bike park and do laps on laps. Hell, you could even rock up to the startline of the world’s wildest races. The Nomads forte is being ready and willing to go wherever, whenever. The only thing it needs is a rider willing to press send.

Key Features:

• Available in: Carbon
• Front Travel: 170mm
• Rear Travel: 170mm

VPP
VPP suspension can be optimized to strike a balance between pedaling efficiency and all-out bump-chomping prowess. The Nomad is exceptional at absorbing the biggest hits so its rider can charge harder, with more confidence, in the very worst terrain. But because it’s still pedal efficient, getting up to the best, highest trails isn’t a chore like some other bikes.

All the travel
If you’re stomping gaps and stamping passports you’re no stranger to travel. 170mm of 38mm diameter fork and 170mm of VPP rear suspension, compatible with both coil and air shocks.

Sensitivity and constant traction
On the Nomad, lowering the anti-squat reduced pedal kickback on big square-edge hits at speed, all while improving the overall sensitivity of the suspension to maintain traction at all speeds. Up and downhill.

Flat-out bump control and tracking
By reducing the starting leverage of the latest Nomad, we were able to improve body-weight influenced geometry stability throughout the travel. While reducing progression allowed the suspension to have consistently better tracking qualities throughout the stroke.

Built to last
Short, stout counter-rotating links connect the front and rear triangles to create an extremely robust chassis that reduces lateral flex. Simple expanding collet axles hold things together, pivots run on large diameter axles and bearings (which we offer free lifetime replacement for) and the lower link includes a grease-port for quick, easy maintenance.

SPECIFICATION

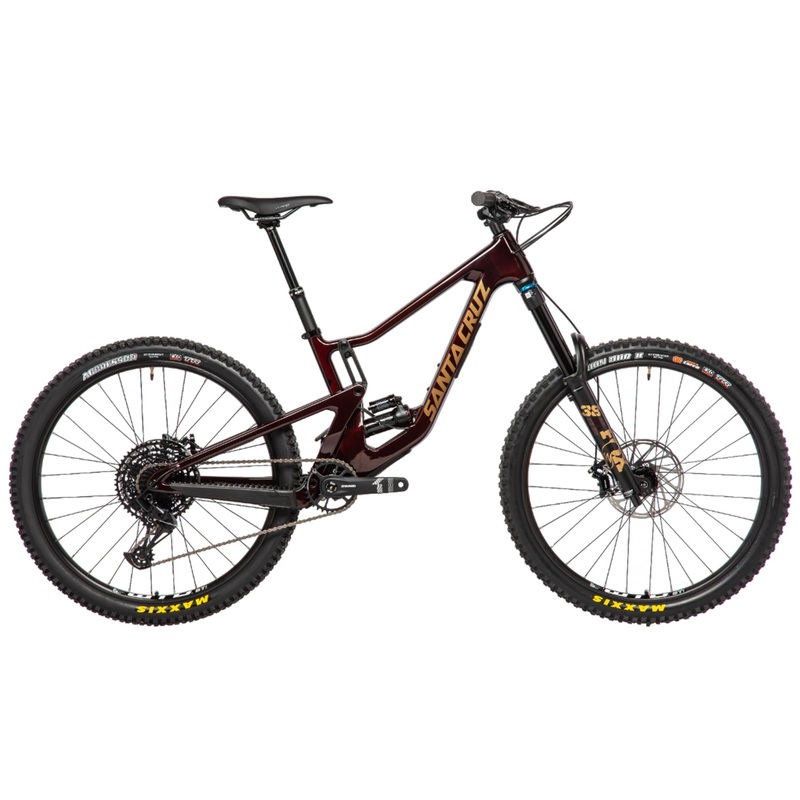

• Frame Model: Santa Cruz Nomad Carbon CC
• Frame Size: Small
• Frame Color: Oxblood
• Frame Year: 2021
• Rear Shock: RockShox Super Deluxe Select
• Headset: Cane Creek 10 IS Integrated Headset
• Spacers (yes/no / xxmm): 2 x 10mm, 2 x 5mm
• Fork Model: 2022, 38, A, FLOAT, 27.5in, P-S, 170, Grip, 3Pos, Matte Blk, No Logo, Kabolt-X 110, BLK, 1.5 T, 58HT, 37mm Rake, N/M OE
• Fork Travel: 170mm
• Front Axle: Kabolt
• Front Axle Spacing: 15x110mm
• Front Wheel Diameter: 27.5″
• Front Hub: SRAM MTH 716
• Spoke Holes: 32
• Front Spokes: Sapim
• Front Nipples: Sapim
• Front Rim: WTB ST i30 TCS 2.0
• Front Tire: Maxxis Minion DHR II 27.5×2.4WT, 3C MaxxGrip, EXO, TR
• Front Brake Model: SRAM Guide RE
• Disc Rotor Interface: 6-Bolt
• Disc Rotor Model: SRAM Centerline
• Disc Rotor Diameter: 200mm
• Stem Model: RaceFace Chester 35
• Stem Length: 40mm
• Stem Steer Tube Diameter: 1 1/8″
• Stem Bar Clamp Diameter: 35mm
• Handlebar: RaceFace Aeffect R 780mm
• Shifters: SRAM NX Eagle, 12spd
• Brake Levers: SRAM Guide RE
• Grips: Santa Cruz House Grips
• Brake Cables: SRAM
• Shift Cables: SRAM
• Seatpost: SDG Tellis Dropper 150mm, 31.6
• Dropper Routing: Internal
• Saddle: WTB Silverado Medium Steel
• Front Derailleur: N/A
• Bottom Bracket: SRAM DUB 68/73mm Threaded BB
• Crankset: SRAM X1 1000 Eagle 148 DUB
• Chainrings: SRAM X-SYNC 2 Eagle 30t
• Pedals: Not included
• Chain: SRAM SX Eagle 12spd
• Cassette: SRAM PG1230, 12spd, 11-50t
• Rear Derailleur: SRAM SX Eagle, 12spd
• Derailleur Mount Type: SRAM UDH
• Rear Axle: Burgtec Bolt-On
• Rear Axle Spacing: 12x148mm
• Rear Wheel Diameter: 27.5
• Rear Hub: SRAM MTH 746
• Spoke Holes: 32
• Rear Spokes: Sapim
• Rear Nipples: Sapim
• Rear Rim: WTB ST i30 TCS 2.0
• Rear Tire: Maxxis Agressor 27.5×2.5WT, EXO, TR
• Rear Brake Model: SRAM Guide RE
• Disc Rotor Interface: 6-Bolt
• Disc Rotor Model: SRAM Centerline
• Disc Rotor Diameter: 200mm
