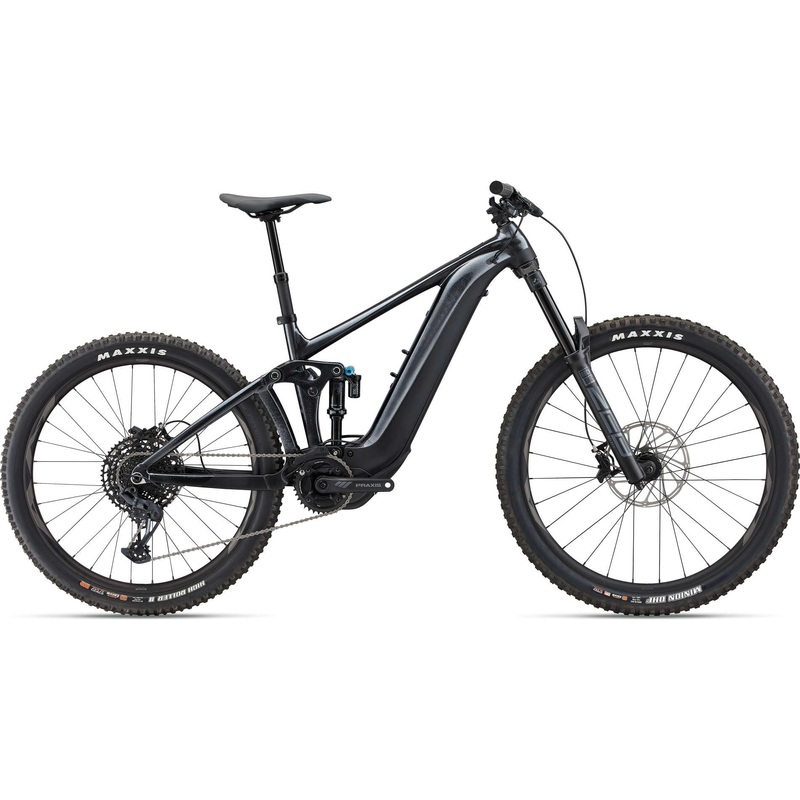

Every trail, every steep climb, every thrilling descent. Tested and developed by Giant’s e-bike enduro pros, this updated trail ripper gives you the power to enjoy the best parts of the ride again and again.
Trail technology
Proven Maestro rear suspension (160mm) and a powerful but compact SyncDrive Pro motor technology boost your capabilities on steep climbs and rugged descents.
Total control
RideControl Ergo 3 offers integrated, user-friendly button controls that are easy to use. The Giant E-bike App gives you tuning options and E-bike specific fitness tracking.
Long-lasting power
Climb steep mountains and enjoy fun descents all day long with the downtube-integrated EnergyPak
How far can I expect to ride on a single battery charge?
The range for a single battery charge can vary greatly depending on conditions such as the combined weight of the rider and cargo; wind resistance; tire pressure and tread profile; terrain and elevation changes; road or trail surface; outdoor temperature; maintenance of the E-Bike; and the condition of the battery.
Conditions are categorized as extreme, good and ideal. Extreme conditions typically occur when riding with a heavy load, strong headwinds or excessive climbs.
| Extreme: 37 miles |
Good: 74 miles |
Ideal: 118 miles |
Specifications
| Motor: SyncDrive Pro, 85Nm, powered by Yamaha |
Shifters: SRAM NX |
| Controller: RideControl Ergo 3, grip integrated |
Front Derailleur: MRP 1X HD2 custom co-molded chain guide |
| Display: RideControl GO, frame integrated LED displayANT+ Wireless display compatible |
Rear Derailleur: SRAM GX 12-speed |
| Battery: EnergyPak Smart 625WhEnergyPak Plus range extender compatible |
Brakes: SRAM Code R, hydraulic disc, 220mm[F] /200mm[R] |
| Sizes: S, M, L, XL |
Brake Levers: SRAM Code R |
| Colors: Black Diamond |
Cassette: SRAM PG-1230, 11-50T, 12-speed |
| Frame: ALUXX SL-grade Aluminum, Advanced Forged Composite Upper Rocker, 160mm Maestro suspension system, ‘Boost’ 148x12mm, UDHTM derrailleur hanger |
Chain: SRAM NX Eagle PowerLock |
| Fork: RockShox ZEB Select 29er, 170mm travel, Charger RC damper, 15×110 Boost, Maxle Stealth, E-bike Approved |
Crankset: SRAM X-Sync Eagle 36T chainring Praxis e-Cadet+ custom forged crankarm set (S/M:160, L/XL:165) |
| Shock: Fox Float DPX2 Performance, EVOL Large Volume sleeve, 2-position lever, 205×62.5mm Trunnion mount, custom tuned |
Bottom Bracket – N/A |
| Handlebar: Giant Contact Trail, 35x800mm |
Rims: Giant AM 29″[F] 27.5″[R], Tubeless ready, 30mm inner width |
| Grips: Giant Tactal Pro-E, single lock-on |
Hubs: Giant eTracker Boost, Sealed cartridge bearing, 6-bolt, , [F] 110×15 [R] 148x12mm Thru-axle |
| Stem: Giant Contact SL 35 |
Spokes: Sapim E-Lite [r] Race [f] |
| Seatpost: Giant Contact Switch, dropper, 30,9mm (S:125, M: 150, L/XL:170) |
Tires: Maxxis Minion DHF 29×2.6″ foldable, Tubeless, EXO+, 3C MaxxTerra[F]Maxxis High Roller II 27.5×2.5″ foldable, Tubeless, DoubleDown, 3C MaxxTerra Compound [R] |
| Saddle: Giant Romero Trail |
Extras: Tubeless kit (liquid, valves, levers, manual, tool) |
| Pedals: Flat pedal |
Lighting: Optional:- Giant Recon series e-bike lights available and direct connectable |
Geometry
|
S |
M |
L |
XL |
|
LOW|HIGH |
LOW|HIGH |
LOW|HIGH |
LOW|HIGH |
| SEAT TUBE LENGTH(inch) |
15.7 |
16.7 |
17.7 |
18.7 |
| SEAT TUBE ANGLE |
76.7|77.5 |
76.7|77.5 |
76.7|77.5 |
76.7|77.5 |
| TOP TUBE LENGTH(inch) |
22.4|22.4 |
23.4|23.4 |
24.5|24.4 |
25.6|25.5 |
| HEAD TUBE LENGTH(inch) |
3.9 |
3.9 |
4.3 |
4.7 |
| HEAD TUBE ANGLE |
63.7|64.5 |
63.7|64.5 |
63.7|64.5 |
63.7|64.5 |
| FORK RAKE(inch) |
1.7 |
1.7 |
1.7 |
1.7 |
| TRAIL(inch) |
5.3|5.2 |
5.3|5.2 |
5.3|5.2 |
5.3|5.2 |
| WHEELBASE(inch) |
47.6|47.6 |
48.7|48.7 |
49.8|49.8 |
51|51 |
| CHAIN STAY LENGTH(inch) |
17.9|17.9 |
17.9|17.9 |
17.9|17.9 |
17.9|17.9 |
| BOTTOM BRACKET DROP(inch) |
1|0.6 |
1|0.6 |
1|0.6 |
1|0.6 |
| STACK(inch) |
25|24.9 |
25|24.9 |
25.4|25.2 |
25.7|25.6 |
| REACH(inch) |
16.7|16.9 |
17.7|17.9 |
18.7|18.9 |
19.7|19.9 |
| STAND OVER HEIGHT(inch) |
30.9|31.1 |
30.4|30.6 |
30.4|30.5 |
30.2|30.4 |
| HANDLEBAR WIDTH(inch) |
31.5 |
31.5 |
31.5 |
31.5 |
| STEM LENGTH(inch) |
1.6 |
1.6 |
2 |
2 |
| CRANK LENGTH(inch) |
6.3 |
6.3 |
6.5 |
6.5 |
| WHEEL SIZE |
