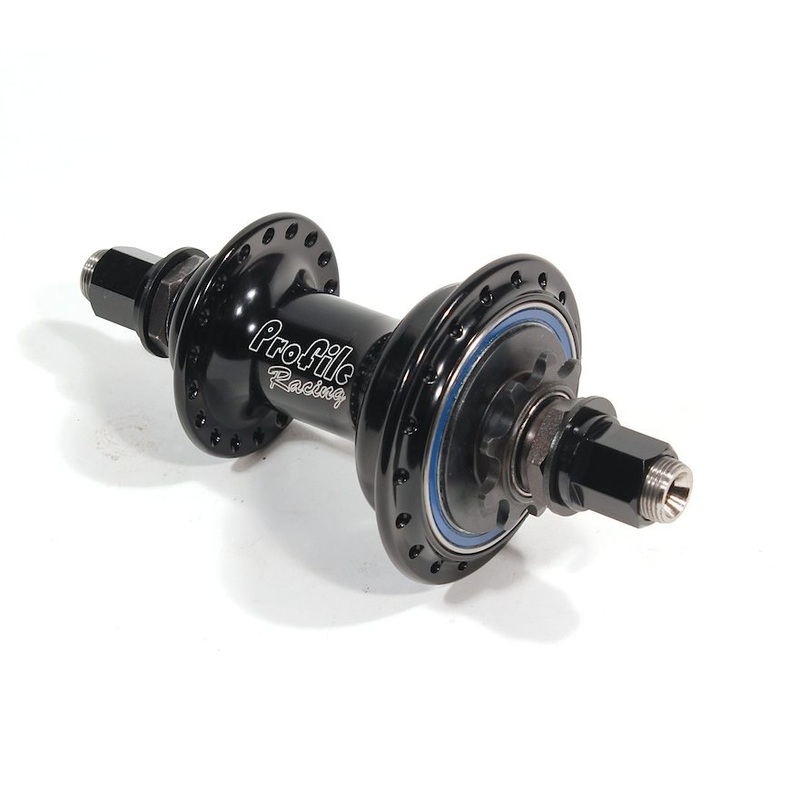

TheProfile Z Coaster Rear BMX Hubis a proprietary freecoaster style hub engineered, designed, & manufactured by Profile Racing. It essentially works as a spring/pawl cassette hub that can be disengaged into a freecoaster with varying slack options.

Features

• The Z Coasters Pawl is Z shaped to allow for engagement/disengagement by the center Slack Cam Ring. This allows for adjustable slack by being able to switch cam rings. They are available in 20/33/45 deg, 60 deg, 75 deg, 90 deg, & 115 deg slack opti0ns. This means you can dial in the slack from less than 1/8 of a crank to a full 1/3 of a crank!
• The Z Coaster has an outer driver support bearing for the oversized driver mechanism. This bearing supports the driver from the outside.
• The Z Coasters pawls and ratchet ring have a proprietary coating that offer smooth engagement.
• There are 48 points of engagement: all pawls engage simultaneously.
• Slack Options: 20/33/45 Degrees (45 degrees = 1/8 of a crank), 60 Degrees (1/6 of a crank), 75 Degrees (1/5 of a crank), 90 Degrees (1/4 of a crank), 115 Degrees (1/3 of a crank)
• Choice of 3/8 Bolt On or 14mm Axles-Chromoly
• RHD OR LHD
• 36h Only
• Utility patents and design patents granted & pending.
• Made here in the USA at the Profile Racing factory.

Z Coaster Hub Weights

• Hub w/14mm GDH Chromo 9t Chromo: 583g/20.55oz
• Hub w/ 3/8 Chromo 9t Chromo: 559g/19.7oz

Z Coaster Hub Dimensions

• Center to Drive Side Flange32mm
• Flange Diameter on Drive-Side66mm
• Center to Non-Drive Flange32mm
• Flange Diameter on Non-Drive Side50mm

//
