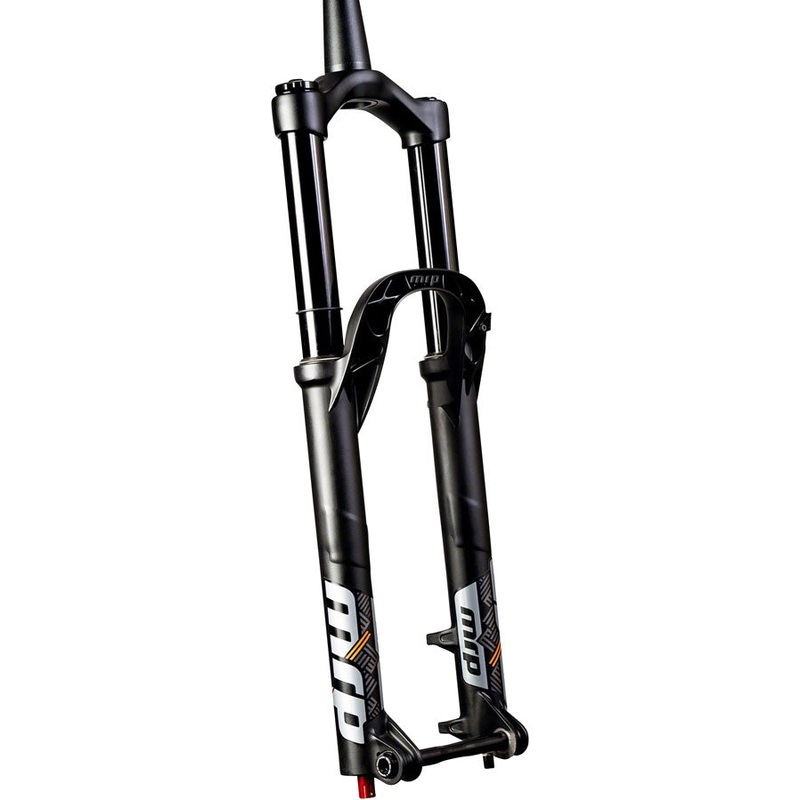

MRP Raven Suspension Fork – 29″ 150 mm 15 x 110 mm 46 mm Offset Black. Utilizing the proven Ribbon chassis and sharing much of its technology the Raven brings MRPs renowned performance to a new price point. Key differences from the Ribbon are the Huck Puck system in lieu of Ramp Control a simplified twin-tube damper and the absence of PSST pressure relief valves on the lowers.
Outcast arch design with forward-facing weight reliefs to mitigate mud build up and deliver a distinctive look
Bladder-free damper utilizing a low-pressure IFP
Independently adjustable positive and negative air-chambers for greater tunability
Adjustable internal volume with Huck Puck system
Steerer Type |
Tapered |
Color |
Black |
Brake Type |
Post Mount 180 |
Crown Race |
40 |
Negative Spring |
Air |
Weight |
2110 |
Travel (mm) |
150 |
Wheel Size |
29″ |
Wheel Size |
27.5+ |
Offset |
46 |
External Adjustments |
Low Speed Compression Damping |
External Adjustments |
Rebound Damping |
Defined Color |
Black |
Positive Spring |
Air |
Axle to Crown Length |
562 |
Front Axle |
15mm Thru x 110mm |
Stanchion Diameter |
35 |
Maximum Tire Width |
2.6 – 3.0″ |
S.H.I.S. Stem Clamp Diameter |
28.6 |
