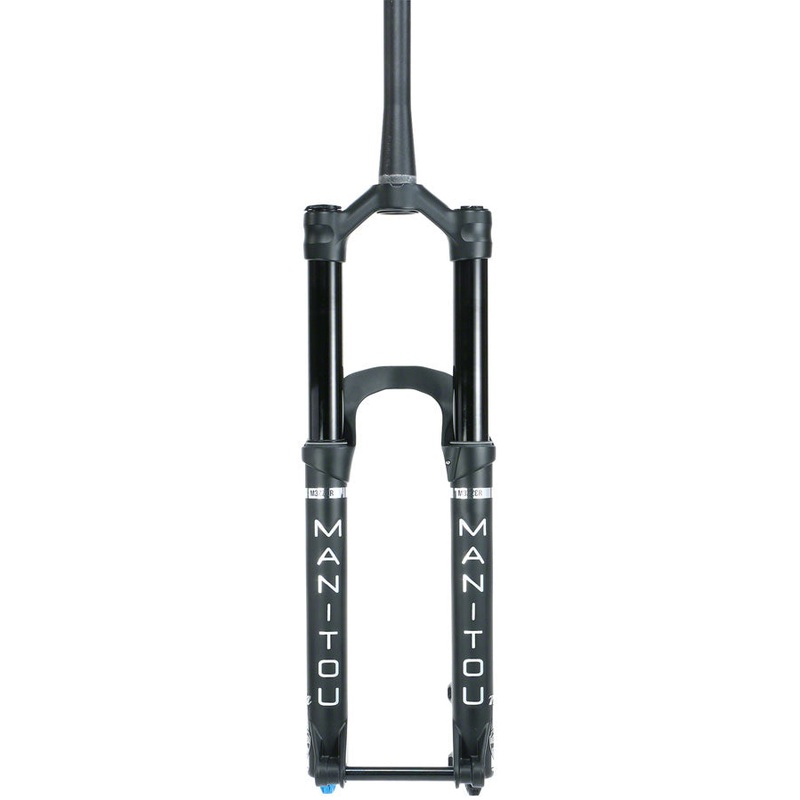

Manitou Mezzer Expert Suspension Fork – 29″ 160 mm 15 x 110 mm 44 mm Offset Matte Black. Loaded with unprecedented features Mezzer gives you the handling and control you need for the ultimate enduro ride. Built around 37mm stanchions and a Reverse-Arch lower leg design with the Hexlock SL2 axle Mezzer is the stiffest chassis in its category.
37mm stanchions Reverse-Arch design and Hexlock SL2 axle for the ultimate stiffness
IVA Air Volume Adjustability
VTT Damper w/ 6-position compression and rebound adjustability
140mm to 180mm internally adjustable travel in 10mm increments (travel spacers included)
Integrated flexible fender can be installed/removed by three small screws threaded into the arch of the fork
Steerer Type |
Tapered |
Lockout Switch |
Crown |
Brake Type |
Post Mount 180 |
Negative Spring |
Air |
Travel (mm) |
160 |
Offset |
44 |
Axle to Crown Length |
574 |
Front Axle |
15mm Thru x 110mm |
Maximum Tire Width |
74 |
S.H.I.S. Stem Clamp Diameter |
28.6 |
Color |
Matte Black |
Crown Race |
40 |
Wheel Size |
29″ |
Designed for ebike |
Yes |
External Adjustments |
High Speed Compression Damping |
External Adjustments |
Rebound Damping |
Defined Color |
Black |
Positive Spring |
Air |
Stanchion Diameter |
37 |
Steerer Tube Length (mm) |
251 |
