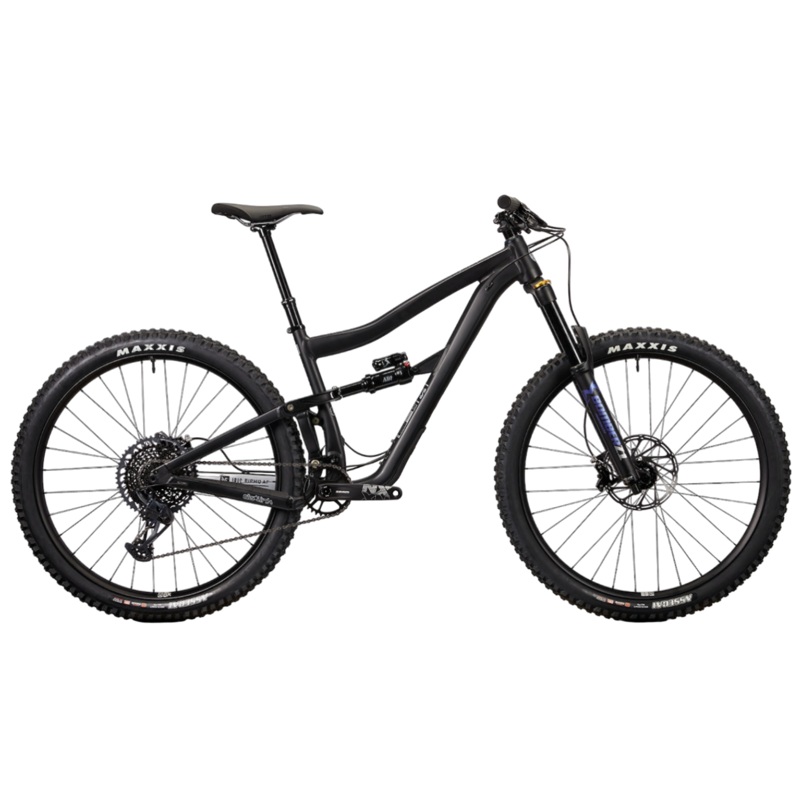

The Ripmo AF (Aluminum Frame) brings the award-winning performance of the carbon Ripmo to a wider, rowdier audience. Its everything we love from the carbon Ripmo, plus a few tweaks.

ITS METAL
Over our long tenure from mountain bikings awkward adolescence to its current anything-shreddy era, weve experimented with steel, aluminum and titaniumremember the Bow-Ti, the first superbike? We remember the metal times too, and it feels good to offer a premium ride experience to our broadening family of riders, courtesy of durable, affordable aluminum alloy.

MODERN GEOMETRY
With a steep, 76-degree seat tube angle and a rangy but not stratospheric reach, the Ripmo AF places riders centrally and upright over the bottom bracket. It makes for an efficient position that can go the long haul without placing too much weight on its slack, 64.9degree headtube angle. A 44mm reduced-offset fork is more surefooted on steep descents and steadies high speeds. Better up, better down.

DW LINK
Since 2005, weve partnered with suspension guru Dave Weagle on the dw-link suspension platform. It provides an unparalleled combination of climbing efficiency and downhill performance, which has been proven repeatedly at the highest levels of racing.

AIR & COIL COMPATIBLE
The Ripmo AF is compatible with both coil and air shocks due to a more progressive leverage rate. It allows for coils linearity to thrive and we spec air shocks with tunes that provide pop without feeling too harsh. On the trail, it gives the suspension a supple feel throughout the entirety of the stroke, enhancing traction no matter how deep you dig.

2.6 TIRE CLEARANCE
Ibis helped pioneer the wide rim revolution, which inspired the new crop of wider 2.42.6 tires. When paired together, this combo can be run at ultra low pressures which results in elbow-dragging cornering traction without sacrificing straight line speed.

PICK YOUR SIZE
We use words like small, medium, and large to describe our sizing because its easy to understand, but our ultra low standovers give you the ability to size your frame based on reach and preference.

LONG DROPPER POST
Whats better than a dropper post? A longer one. Our frames are designed to accommodate the longest dropper posts possible. Riders over 58 (or 173cm) can easily run a 185mm dropper post, while folks between 5 and 58 (152cm172cm) can use a post 125mm or longer depending on inseam length.

REMOVABLE ISCG05 MOUNT
Our optional ISCG 05 mount is there if you want it, removable if you dont.

LIFETIME WARRANTY
If its our fault, well fix it. Simple as that.

SPECIFICATIONS

• Frame Model: Ibis Ripmo AF
• Frame Size: Large
• Frame Color: Black
• Frame Year: 2023
• Rear Shock: Marzocchi Bomber Air, 210×55
• Headset: Cane Creek Forty
• Spacers (yes/no / xxmm): 5 x 5mm
• Fork Model: Marzocchi Bomber Z1 Coil, 44mm offset, Medium spring installed
• Fork Travel: 160mm
• Front Axle: Fox Kabolt
• Front Axle Spacing: 15×110
• Front Wheel Diameter: 29″
• Front Hub: Ibis Logo
• Spoke Holes: 32
• Front Spokes: Sapim D-Light J-bend
• Front Nipples: Sapim souble square nipple
• Front Rim: Send 1 Aluminum
• Front Tire: Maxxis Assegai 29 x 2.5WT 3C MaxxGrip EXO+ TR
• Front Brake Model: SRAM Code RSC
• Disc Rotor Interface: 6-bolt
• Disc Rotor Model: SRAM Centerline
• Disc Rotor Diameter: 200mm
• Stem Model: Ibis
• Stem Length: 40mm
• Stem Steer Tube Diameter: 1 1/8″
• Stem Bar Clamp Diameter: 31.8
• Handlebar: Ibis Aluminum, 780mm
• Shifters: SRAM NX Eagle
• Brake Levers: SRAM Code RSC
• Grips: Lizard Skin Charger Black w/Ibis Logo clamps
• Brake Cables: SRAM
• Shift Cables: SRAM
• Seatpost: KS Rage-I Dropper 150mm
• Dropper Routing: Internal
• Saddle: WTB Volt CrMo Medium
• Bottom Bracket: SRAM DUB BSA
• Crankset: SRAM NX Eagle DUB Wide Spindle 175mm
• Chainrings: SRAM 30t
• Chain: SRAM NX Eagle
• Rear Derailleur: SRAM GX Eagle
• Derailleur Mount Type: Standard
• Rear Axle: Ibis Thru-axle
• Rear Axle Spacing: 12x148mm
• Rear Wheel Diameter: 29″
• Rear Hub: Ibis Logo SRAM XD
• Spoke Holes: 32
• Rear Spokes: Sapim D-Light J-bend
• Rear Nipples: Sapim souble square nipple
• Rear Rim: Send 2 Aluminum
• Rear Tire: Maxxis Minion DHR II 29 x 2.4WT 3C MaxxGrip EXO+ TR
• Rear Brake Model: SRAM
• Disc Rotor Interface: 6-bolt
• Disc Rotor Model: SRAM Centerline
• Disc Rotor Diameter: 180mm
• Comes with 200ml Stans Sealant
