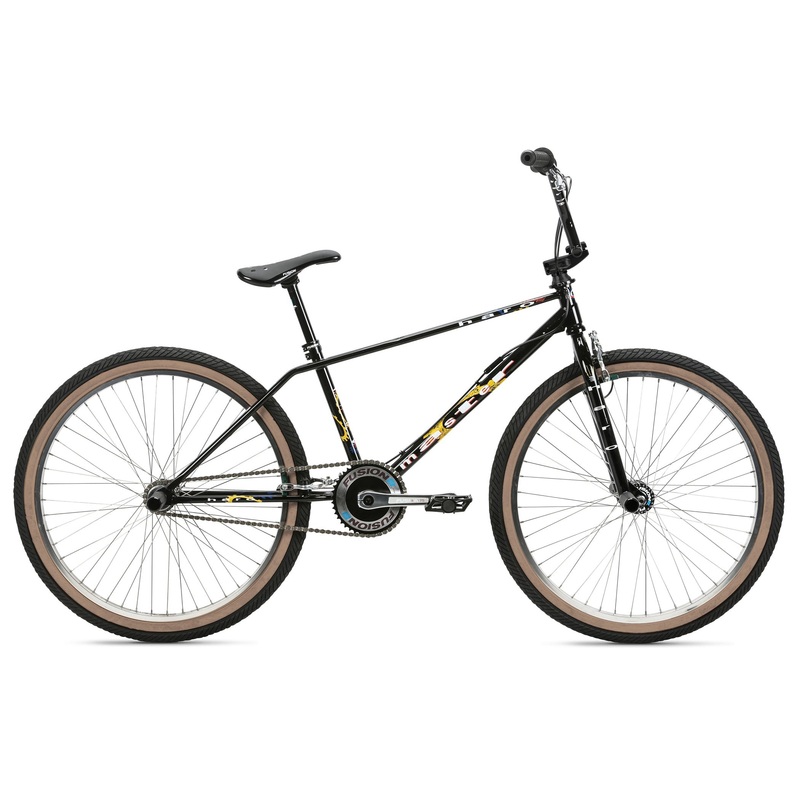

The Haro Lineage Ground Master 26″ BMX Freestyle Bike-Black takes the classic 1992 twin top tube design and scales it up for riders who want a larger, more stable ride. Built with a full chromoly frame and fork, it features Kneesaver bars, Fusion components, and smooth alloy pegs for total control. Double-wall rims, sealed high-flange hubs, and Kenda Kranium tires keep it rolling strong, while chainstay-mounted rear brakes and an internally routed front brake maintain a clean look. Whether hitting tricks or cruising, this bike delivers classic style with modern performance.

NOTE: As with any complete bike, J&R Bicycles recommends that you have a professional bicycle store build your bike. Bikes ordered through mail-order come partially assembled and need to be inspected and assembled by a bicycle mechanic. Failure to do so may void the manufacturer’s warranty. Manufacturers warranties differ for every brand. You can check the brand’s website for warranty information.

FEATURES

• 100% chromoly Lineage Ground Master frame with twin top tubes, hour glass Mid BB shell, integrated head tube and Lineage dropouts. 22.5″ top tube length
• 100% heat-treated chromoly Lineage fork with CNC 1-piece internal threaded steer tube, integrated bearing race, tapered legs, 15mm offset dropouts and 990 brake mounts with internal brake cable routing
• 100% heat-treated and butted chromoly Lineage Kneesaver 8.5″ bars with Fusion Lineage CNC alloy top load stem
• Lineage Fusion alloy 175mm cranks with 22mm chromoly spindle. Haro Lineage Fusion Disc CNC alloy 41T sprocket. Sealed Mid BB
• 41/17 gearing
• Fully sealed 36-hole wheels with Lineage high flange hubs with freecoaster rear.
• Double-wall 36H alloy rims.
• Kenda Kranium tires 26 x 2.1″ front and rear
• Haro Lineage padded Pivotal stealth seat with alloy Lineage Pivotal post
• Haro Fusion pedals
• CNC alloy pegs
• CNC alloy gyro with Teflon bearing
• Dia-Compe Hombre FS996 (front) and AD996 (rear) brakes with Tech 77 levers.
• Haro Lineage alloy two-bolt seat post clamp

SPECIFICATIONS

• COLOR: Black
• FRAME: Lineage Master Bashguard 26″, Full Chromoly, 22.5″, Internal Head Tube, Removable Rotor Tab Mounting Holes, Removable Brake Mounts
• HEADSET: Sealed Integrated, 1 1/8″
• BB: Sealed MID
• BARS: Lineage Kneesaver, 8.5″, 100% Heat-Treated, Multi-Butted
• FORK: Haro Fork w/ 990 Mounts, Internal Cable Routing, 28mm Offset, 3/8″ Axle, Chromoly Steerer, Tapered Fluted Legs
• STEM: Haro Lineage Fusion Top Load, T6 Alloy, Cold Forged w/ CNC, 52mm
• GRIPS: Haro Team Grip, 145mm Length x 29mm Diameter, 50mm OD Flange, Kraton A15 Material (Super Soft)
• SEAT: Haro Fusion Slim Stealth Pivotal
• SEAT POST:Haro Fusion Stealth Pivotal, 25.4 x 300mm
• CRANKS: Haro Lineage Heat-Treated 3-Piece Alloy, 175mm, Bolt Drive Interface, RSD & LSD, 22mm Spindle
• CHAINRING: Fusion Disc Sprocket, CNC Bolt Drive, 5mm Alloy, 41T, Solid Ring w/ Machined Teeth, Includes Sprocket Adapter
• PEDALS: Haro Fusion Alloy Body, Chromoly Axle
• FRONT HUB:36H Alloy Body, 3/8″ Chromoly Straight Axle, 2 Sealed Bearings
• REAR HUB: Haro Lineage Sealed Bearings, 17T Freewheel, 17mm Steel Flange Axle Nuts, CP Finish Hardware
• RIMS:Haro Lineage 26 x 1.75″, 36H, Double Wall, Welded Joint
• TIRES: Kenda Kranium, 26 x 2.25″, 60 Max PSI
• BRAKES:Dia-Compe FS996 “Hombre” U-Brake, Cold Forged Aluminum Arms, Dual Spring Tension Adjustment w/ Anchor Bolt Parts
