MT series hubs are Halo’s flagship mountain bike hub range. The MT series encompass everything we feel hubs for mountain biking should offer.

Available as a custom wheelbuild from us.

Durability, modularity and light weights make the MT Series a simple choice.

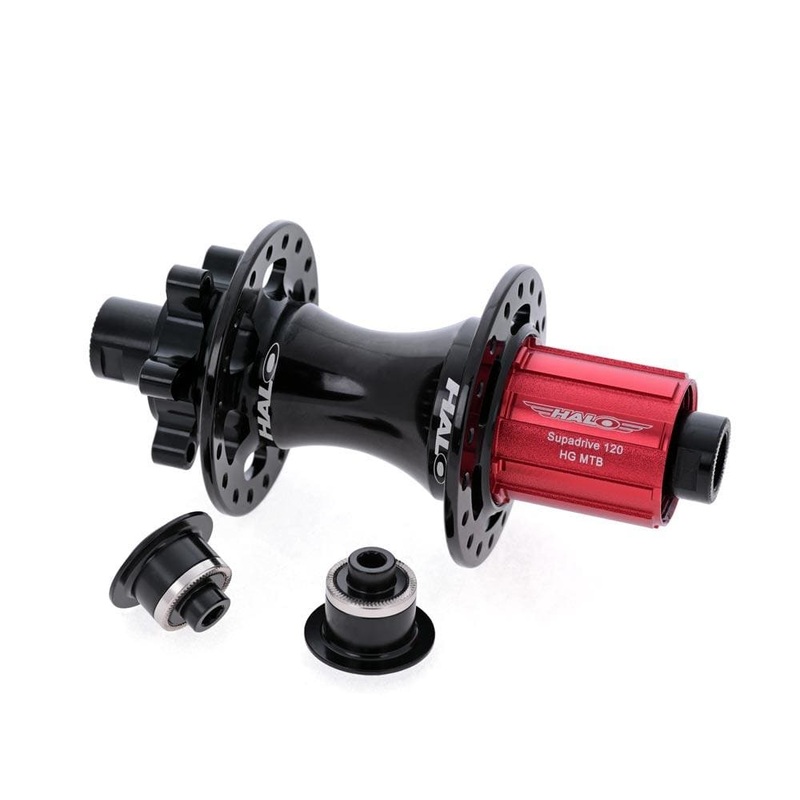

Suited best to XC, trail and enduro bikes alike, the MT Supadrive hub offers a 120 point near instant engagement with the ability to withstand substantial torque loads, such as those found with wide range cassettes. With multiple World Championship titles across a range of disciplines, the Supadrive system is tried and tested to the very highest level and is our most advanced and reliable drive system to date.

Wide spoke flanges, sealed cartridge bearings and a Cr-Mo tube axle in the MT Supadrive hub ensure longevity.

Designed to be run with mountain bike gearing, the MT Supadrive hub is available with SRAM XD or Cr-Mo SHIMANO MS or HG (MTB width) freehub options.

Please refer to the GXC Supadrive for an 11-speed road cassette compatible hub.

An additional Boost adaptor kit is also available, to retrofit this hub into Boost compatible frames.

Replacement axle kits for Supadrive hub:

• HXHASVTMHG Suitable for HG type freehub includes 135mm QR and 142x12mm End cones
• HXHASVTMXD Suitable for XD type freehub includes 135mm QR and 142x12mm End cones

Specifications

• Material6061 Alloy forged hub shell
• Drillings32H or 36H
• AxleCro Mo with12x142mm thru ends
• Disc MountIS 6-Bolt
• Ratchet120 teeth triple-wedge pawl mechanism
• Freehub BodyCro-Mo Shimano HG (MTB width), SHIMANO MS or SRAM XD
• Spoke Hole Circle Diameter (PCD)58mm
• Centre to FlangeLeft: 34mm, Right: 20mm
• BearingsHub body: 6902 x2. Freehub: HG 6902 x2, MS 6802 x3, XD 15267 x3
• OLD142mm (135mm with optional QR endcaps)
• Model RefS-DRV-FG
• ColourBlack
