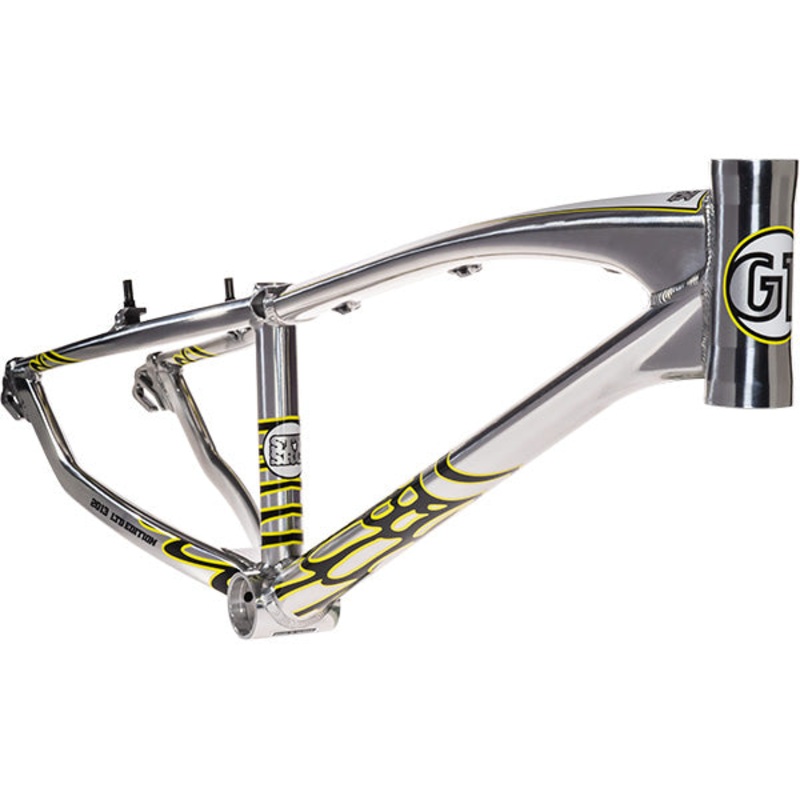

The 2013 GT Staystrong Speed Series race frame is made from 6061 T6 aluminum and features an integrated headtube, one of a kind rear triangle design, and hydroformed frame tubing. All frames also feature an integrated seat clamp. ONLY AVAILABLE In EXPERT and PRO24.
NOTE: Pro, ProXL, ProXXL and Pro 24″ Cruiser features a 30mm bottom bracket and reverse drop-outs that are unique to BMX. These sizes with include a Euro conversion kit so you can run any Euro bottom bracket. The Junior and Expert use a standard Euro bottom bracket. All frames include chain tensioners.
FEATURES:*6061 T6 aluminum tubing*Hydro-formed tubing shape*Unique bottom bracket shell for pro size frames, stiffer*Integrated seat clamp eliminates the need for a regular clampSPECS:Junior and Expert: 25.4mm postAll-Pro Sizes: 27.2mm post
USE: RaceMATERIAL: 6061 aluminumHEADSET STYLE: integratedBRAKEMOUNTS: V-BrakeBB SHELL: Euro (JR and EX), 30mm for Pro and larger TT: Top Tube | CS: Chain Stay | SA: Seat Angle | HA: Head Angle
SIZE |
TT |
CS |
HEADSET |
HA |
SA |
BB HEIGHT |
WEIGHT |
JUNIOR |
18.5″ |
13.5″ |
1″ |
73 |
70 |
10.25″ |
2lbs 15.8oz |
EXPERT |
19.25″ |
13.5″ |
1 1/8″ |
73 |
70 |
10.25″ |
3lbs 1.8oz |
PRO |
20.5″ |
14.5″ |
1 1/8″ |
74 |
72 |
10.75″ |
3lbs 11.1oz |
PROXL |
21″ |
14.5″ |
1 1/8″ |
74 |
72 |
10.75″ |
3lbs 10.5os |
PRO XXL |
21.5″ |
15″ |
1 1/8″ |
74 |
72 |
10.75″ |
3lbs 11.9oz |
PRO 24 |
21.75″ |
15.5″ |
1 1/8″ |
73 |
70 |
11.5″ |
3lbs 12.2oz |
