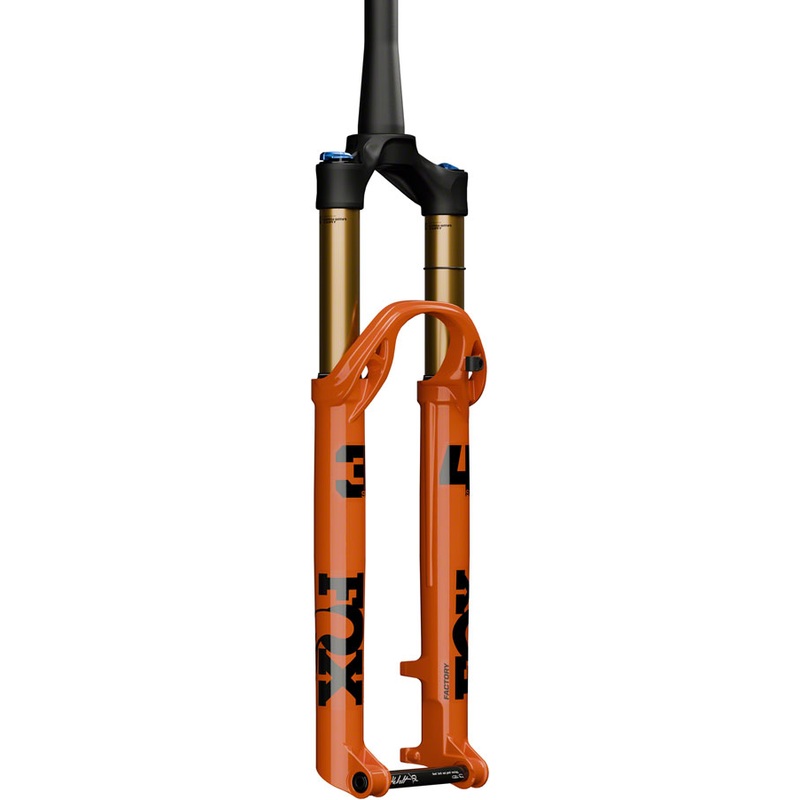

FOX 34 SL Factory Suspension Fork – 29″ 130 mm 15 x 110 mm Kabolt SL 44mm Offset GRIP SL Damper 3-Position Adj Shiny Orange. XC courses are more technical than ever with the latest longer-travel XC bikes more than capable. With a stout full-width stance increased travel and tire clearance and svelte sub-1500g weight the new 34 SL Factory suspension fork is built to exceed the demands of modern XC and downcountry. Features Kashima Coating on upper tubes for added smoothness and durability

Full-width 34mm chassis with aggressive generative design-aided arch and crown for 17% increase in stiffness and 10mm increase in travel over 34 SC at only 3% weight increase

20mm increased bushing overlap for reduced friction and greater stiffness with no increase in axle-to-crown length (compared to 34 SC)

Longer air spring than 34 SC with larger negative volume mirrors 34 LTs supple initial stroke and 34 SCs supportive mid and end stroke

Double-butted damper side stanchion for weight savings

Lower Leg Bypass Channels relocated 90 inboard for improved bushing loading and reduced dynamic friction

• TECH SPECS

Steerer Type TaperedLockout Switch CrownBrake Type Post Mount 180Negative Spring AirTravel (mm) 130Offset 44Axle to Crown Length 540.5Front Axle 15mm Thru x 110mmMaximum Tire Width 63.5S.H.I.S. Stem Clamp Diameter 28.6Color Shiny OrangeCrown Race 40Wheel Size 29″External Adjustments High Speed Compression DampingExternal Adjustments Low Speed Compression DampingExternal Adjustments Rebound DampingDefined Color OrangePositive Spring Airkeyword search FOX Model Year 26 FOX MY26Stanchion Diameter 34
