Dual Sport 3 SO XL Dark Aquatic

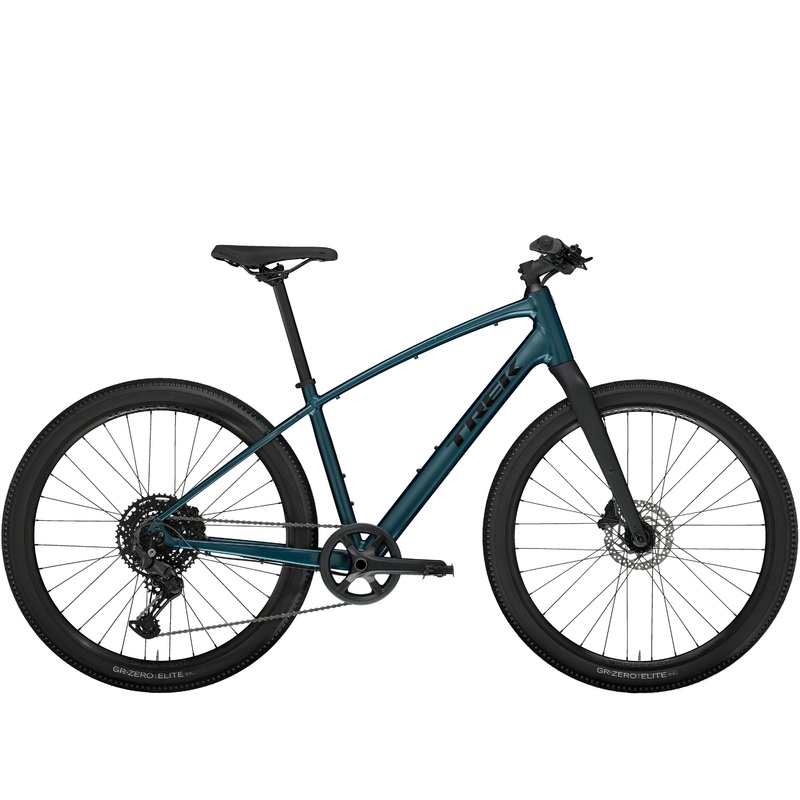

Dual Sport 3 is a high-performance, go-anywhere hybrid bike that transitions from pavement to rougher terrain with ease. It has a light frame and a simple 1x Shimano CUES drivetrain with a wide range of gears. Its wide Bontrager Kovee wheels and wide grave
Dual Sport 3 is a high-performance, go-anywhere hybrid bike that transitions from pavement to rougher terrain with ease. It has a light frame and a simple 1x Shimano CUES drivetrain with a wide range of gears. Its wide Bontrager Kovee wheels and wide gravel tires soak up bumps and rough terrain for a comfortable, confident ride on pavement, rail trails, and light dirt paths.
- Stiff wheels and wide tires give you the terrain-smoothing comfort and confidence of a suspension fork without the added weight
- The 1x drivetrain gives you all the gears you need and none you dont
- Versatile gravel tires are fast on pavement and grippy on rougher terrain
- The cables are routed internally, which protects them from the elements and adds to the bikes sleek look
Shimano CUES
Inspired by rider demand for trouble-free drivetrain longevity and performance, Shimano CUES offers a new foundation for versatility and durability across a range of both electric and standard bikes. CUES features Shimanos new LINKGLIDE drivetrain technology for significantly increased life on wear items like chain, cassette, and chainrings.
Shimano LINKGLIDE
LINKGLIDE technology has been specifically engineered for incredible durability while still delivering smooth and decisive shifting along with a great pedalling experience. Available exclusively on Shimano CUES drivetrains.
Upgrade your pedals and love your bike more
Pedals are two of the five touchpoints that connect you with your bike, and even though this bike comes with a pair, upgrading to pedals that boost control and grip will greatly improve your ride. See the pedal guide and find the best pedals for your riding style. We recommend flat pedals for simple versatility.
Frame | Alpha Gold Aluminum, internal cable routing, rack & fender mounts, post mount disc, kickstand mount, 135x5mm QR |
Fork | Dual Sport carbon, internal brake routing, fender mounts, rack mounts, ThruSkew 5mm QR |
Wheel Front | / |
Tire | Bontrager GR0 Elite, wire bead, puncture protection, 60 tpi, 650x50mm |
Hub Front | Formula DC-20, alloy, 6-bolt, 5x100mm QR |
Hub Rear | Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5mm QR |
Rim | Bontrager Kovee, double-wall, Tubeless Ready, 32-hole, 23mm width, Presta valve |
Skewer Front | 139x5mm bolt-on |
Skewer Rear | 152x5mm QR |
Shifter | Shimano CUES U6000 w/optical gear display, 10 speed |
Rear Derailleur | Shimano CUES U6000 GS |
Crank | Prowheel alloy, 40T narrow-wide ring, 175mm length |
Cassette | Shimano CUES LG300, LINKGLIDE, 11-48, 10 speed |
Chain | Shimano LG500, 9/10/11 speed |
Brake | Shimano hydraulic disc, MT201 lever, UR300 caliper // Shimano hydraulic disc, MT201 lever, UR300 caliper |
Brake Rotor | Shimano RT26, 6-bolt, 160mm |
Pedal | Wellgo nylon body, alloy cage |
Saddle | Bontrager H1 |
Seatpost | Bontrager alloy, 27.2mm, 12mm offset, 330mm length |
Handlebar | Bontrager Comp Lowriser, alloy, 31.8mm, 15mm rise, 690mm width |
Stem | Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 90mm length |
Grips | Bontrager XR Endurance Elite |
Geometry Chart
B B Drop | 6 |
B B Height | 28.9 |
Chainstay Length | 44.7 |
Eff Top Tube | 61.5 |
Frame Reach | 40.1 |
Frame Size Letter | XL |
Frame Stack | 65.2 |
Head Angle | 71.8 |
Head Tube Length | 21.5 |
Offset | 3.9 |
Seat Tube | 52 |
Seat Tube Angle | 71.8 |
Standover | 84.3 |
Trail | 7.4 |
Wheelbase | 107.9 |
Wheel Size | 27.5″ |
