Name: Chase Edge Expert Bike-Black
SKU: HKDY78602147486
Availability: InStock

Sale!

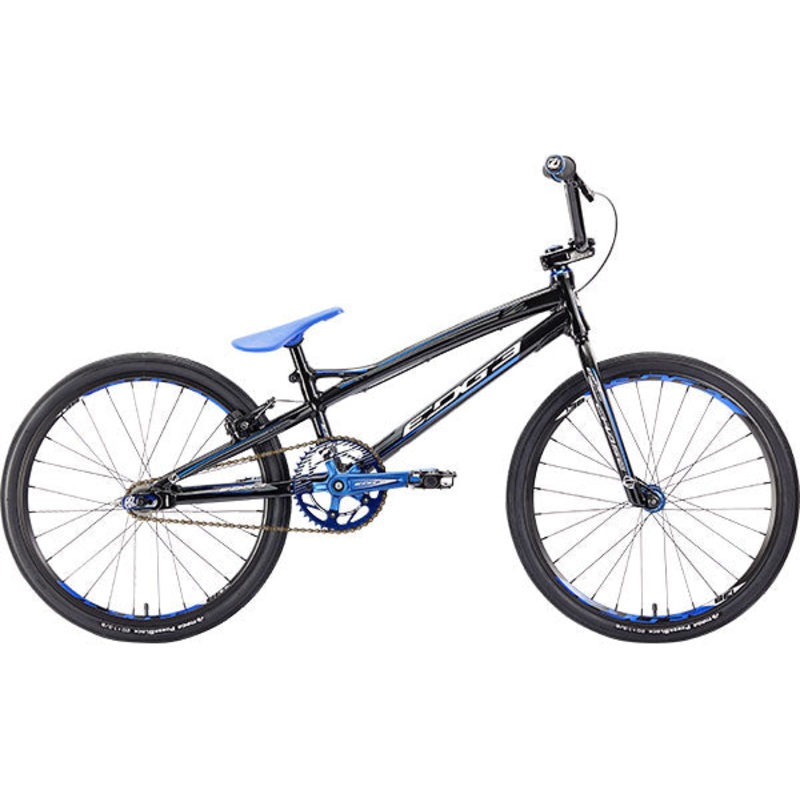

Chase Edge Expert Bike-Black

PRODUCT DETAILS The 2017 Edge is better than ever! Back in Black, with a touch of the Chase team blue, the updated Edge will have you turing heads around the track and on the podium come race time!The Edge hydroformed frame is the most advances frames for

$147.00 $539.95

PRODUCT DETAILS

The 2017 Edge is better than ever! Back in Black, with a touch of the Chase team blue, the updated Edge will have you turing heads around the track and on the podium come race time!
The Edge hydroformed frame is the most advances frames for a complete bike at this price in BMX! Upgrades include a new 90 point of engagement sealed bearing Cassette hub, insight C.O.G.S. grips, and hi end featured parts such as Tioga PowerBlock and PowerBand tires, Tektro brakes, Insight Chain Tensioners, KMC Chain and Blue Pivotal seat, and Insight sprocket help round out the Edge bike, to make it the best value for an upper-level BMX complete race bike!

Recommended Rider Height:49 55 / 1M45 1M65

Top Tube	19.75″
Head Angle	73
Seat Angle	72
BB Height	11″
Chainstay	13″

Frame	Chase Edge Expert 19.75 Top Tube 6061 T6 Alloy Hydroformed, Integrated Head Tube, 1, Water Decals
Fork	Chase Edge Full Cr-mo, 1 Steer Tube With Tapered Blades
Colors	Black
Headset	Integrated Sealed Bearing
Stem	Chase Edge 50mm 6061 T6 Alloy Laser Etched Logo
Handlebar	Chase Edge Bar 5.75 Rise, 8 Back Sweep & 2 Up Sweep
Grips	Insight C.O.G.S 130mm Alloy Clamps Laser Etched Logo, PVC End Plug
Seat	Pro Pivotal
Seat Post	Pivotal 25.4x200mm Polished Alloy
Seat Post Clamp	Chase Edge Integrated On The Frame
Rims	Chase Edge 138 Double Wall 28H 20×1-3/8 Schrader Valve
Front Hub	Mini Hub, 24H, Double Contact Seals Bearing with Dust Caps, 3/8 Axle/Nuts
Rear Hub	28H, Sealed Cartridge Bearings with Dust Caps, 3/8 Axle/Nuts, Steel Cassette Body, 4 Pawls, 96 Points Of Engagement
Spokes	14 Gauge
Tires	Tioga PowerBlock 20×1-3/8
Crankset	Chase Edge 3 Pieces Crank 165mm Alloy Arm With Laser Etched Logo, Cr-mo Chain Ring Bolts and Nuts
Bottom Bracket	113mm Sealed Cartridge Square BB
Pedals	Platform Pedal 9/16
Brake	Tektro BX-1V
Brake Lever	Tektro 317A
Chain	KMC Z33 1/2×3/32
Gearing	Insight 42 Tooth 5 Bolts 110mm 1/2×3/32 3mm Alloy Ring
Extras	Chain TensionnerInsight Twin Hole Laser Etched Logo

Weight:19.1 LBS / 8,68 KG WITHOUT PEDAL

Additional Information

Barcode	140199
Special Shipping Group	No

decorateTable(‘product-attribute-specs-table’)

Reviews

There are no reviews yet.

Be the first to review “Chase Edge Expert Bike-Black”

Chase Edge Expert Bike-Black

PRODUCT DETAILS

Additional Information

Reviews

Related products

Free Agent Novus Bike-Matte Black

SE Racing Mike Buff PK Ripper Looptail Bike-White

Redline MX Expert XL Bike

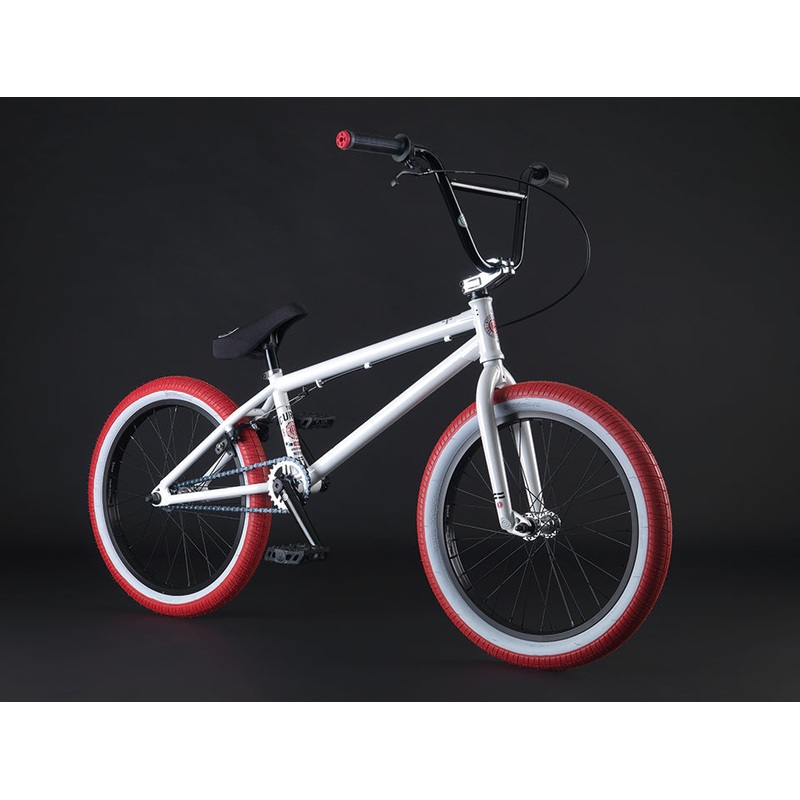

We The People CRS BMX Bike-White 20.25″TT
