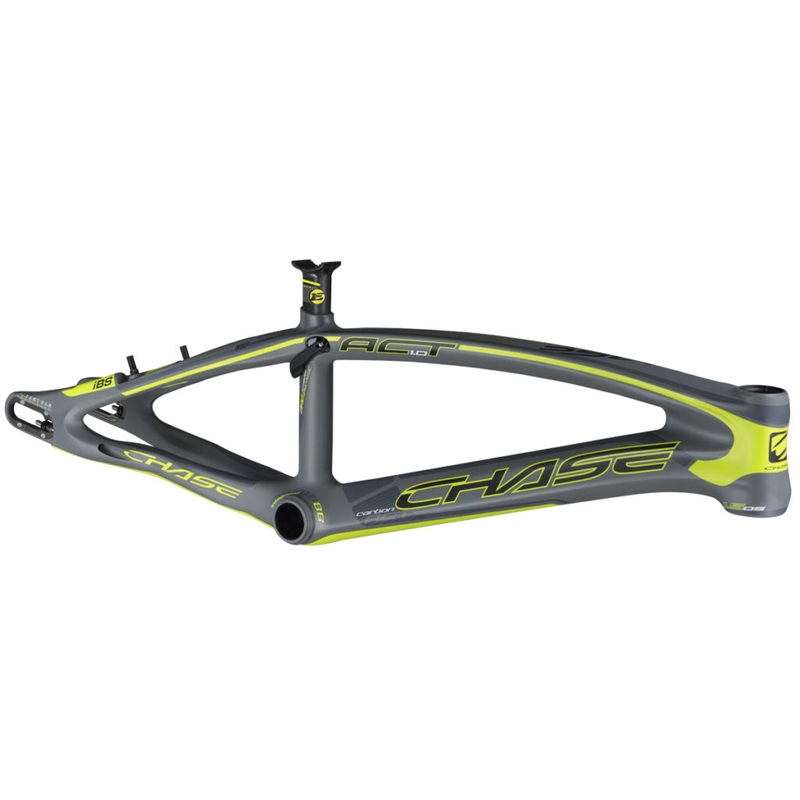

TheChase Act 1.0 Carbon BMX Race Frame-Matte Grey/Neon Yellow is one of the most advanced BMX race frames ever made. Each Act 1.0 frame will come with ELEVN Monocoque Carbon Aero Seat Post (Length : 110mm, Weight : 60 g / 2.12 oz), has an Integrated Quick Release Seat Clamp, and 2 sets of Chain Tensioner 20mm and 10mm, letting you choose the type of rear hub to use with your new frame.
- Carbon Monocoque Frame featuring Uni-Directional carbon technology
- Integrated Tapered headset 1.5 OS bottom and 1-1/8 top with reinforced alloy cup
- Integrated Brakes system
- Internal Brake Cable routing and recessed brake bosses
- Optimized AeroDynamic
- Chase Aero seat post technologies with an Integrated Quick Release seat clamp
- Press Fit Integrated BB86 Bottom Bracket
- with reinforced alloy cup
- Extra length reinforced stainless steel 20mm drop out with built-in alloy tensioner, also included is a 10mm (3/8) axle adapter.
Frame Size |
TT |
CS min |
LR |
AF |
SA |
HT |
SPL |
BBH |
Rider Area |
Weight |
Pro |
20.50 520.70 mm |
14.25 362.0 mm |
2.36 60 mm |
74 |
72.5 |
4.7 120 mm |
9.3 236.2 mm |
11.5 292.1 mm |
20.66 524.98mm |
1039 grams 2 lbs 4.65 oz |
Pro + |
20.75 527.05 mm |
14.25 362.0 mm |
2.36 60 mm |
74 |
72.5 |
4.7 120 mm |
9.3 236.2 mm |
11.5 292.1 mm |
20.99 533.19mm |
1062 grams 2 lbs 5.46 oz |
Pro XL |
21 533.4 mm |
14.25 362.0 mm |
2.36 60 mm |
74 |
72.5 |
4.7 120 mm |
9.3 236.2 mm |
11.5 292.1 mm |
21.24 539.61 mm |
1085 grams 2 lbs 6.27 oz |
Pro XL+ |
21.25 539.75 mm |
14.5 368.3 mm |
2.36 60 mm |
74 |
72.5 |
4.7 120 mm |
9.3 236.2 mm |
11.5 292.1 mm |
21.48 545.65 mm |
1107 grams 2 lbs 7.04 oz |
Pro XXL |
21.50 546.1 mm |
14.5 368.3 mm |
2.36 60 mm |
74 |
72.5 |
4.7 120 mm |
9.3 236.2 mm |
11.5 292.1 mm |
21.74 552.37 mm |
1130 grams 2 lbs 7.86 oz |
|
Frames Weights listed are without the seat post, seat clamp, and chain tensioners.
