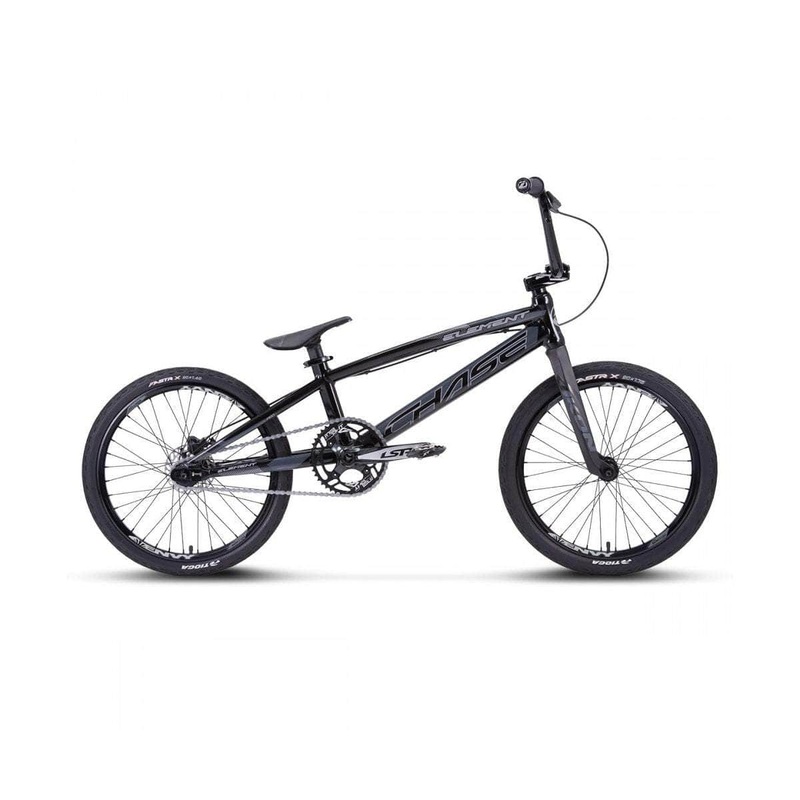

If you’re in the market for a ready-to-win-a-National race bike without spending a gazillion bucks, then worry not, Chase has done all the hard work for you and made a bike for winning at the highest level at an affordable price. Decked out with the latest Element 7075 alloy frame with aero seat tube, Ikon carbon forks, hydraulic disc brake, FastrX tyres, Sun Envy rims and more top-shelf kit. The 2025 Element is ready to win right out of the box at a fraction of the price it would cost to build separately. Lining up on the gate on this, we wouldn’t be surprised if your competition thought you’d spent 5k on your bike.
IMPORTANT NOTE ABOUT PEDAL FITMENT
FRAME: Chase Element Pro 20.5″ Top tube, Hydroformed 7005 T6 Alloy, Aero system shaping, Enclosed rear dropouts, Integrated Chain tensioner system
FORK: Ikon Carbon Pro 1-1/8″ 20mm drop out, Alloy Steer Tube, Drop Out & Top Cap
STEM: Chase Element 31.8mm 50mm
HANDLEBAR: Chase Element 31.8mm 8.5″
CHAINRING: Insight 43T 4 Bolts BCD 104mm
CRANKSET: Excess LSP 175mm, Press Fit BB86
HUBS: Chase Element 3/8″ Bolts, 32H Front, Chase Element 3/8″ Bolts, 32H Rear, 16T cog
RIMS: Sun Ringl Envy lite Rims 201.50″, 32H, No Brake Surface
TYRES: Tioga Fastr X 201.75″ Front & 201.60″ Rear
BRAKES: Tektro Hydraulic lever and caliper (Resin pads), 120mm disc rotor, Lock Disc Adaptor
SEAT: Chase Aero seat post & clamp / ELEVN PC Pivotal seat
PEDALS: Nylon platform. Pictured with Shimano XT Pedals for photo purposes only.
RECOMMENDED SIZE: 1.52m – 1.66m
WEIGHT: 9.25Kg with pedals
PLEASE NOTE THIS BIKE IS FOR TRACK USE ONLY.
SPECIFICATIONS :
| FRAME |
Chase Element Pro 20.5″ Top Tube 7005 T6 Alloy, Integrated Head Tube, 1-1/8″, Closed Drop Out |
| FORK |
Ikon Pro 20″ Carbon, Alloy 1-1/8″ Steer Tube, 20mm Drop Out with Adaptor 3/8″ Axle, Alloy Top Cap |
| HEADSET |
Integrated IS 42/42 1-1/8″, Sealed Bearing |
| HANDLEBAR |
Chase Element Cromo 7.5″, Diameter 31.8mm, Rise, 28″ Wide, 10 Back Sweep & 2 Up Sweep |
| GRIPS |
Insight C.O.G.S 145mm Alloy Clamps Laser Etched Logo, PVC End Plug |
| STEM |
Chase Element 1-1/8″ Steer Tube, Diameter 31.8mmmm, Length 50mm 6061 T6 Alloy CNC Laser Etched Logo |
| BB |
Press Fit 68/73mm Cartridge Bearings |
| CHAINRING |
Insight 43 Tooth 4 Bolt 104mm 1/2″x3/32″ 5mm Alloy Ring |
| CRANK |
Excess LSP 2 Piece Crank 175mm Alloy Arm, 4 Bolt Spider, Cr-mo Pedal Inserts, Alloy Chain Ring Bolts / Nuts |
| PEDAL |
Nylon Platform Pedal 9/16″ |
| CHAIN |
Nylon Platform Pedal 9/16″ |
| COG |
16 teeth |
| FRONT HUB |
Chase Element 3/8″ Bolts, 32H, Sealed Bearing |
| REAR HUB |
Chase Element Pro ISO Hub, 32H, Sealed Bearing, 3/8″ Bolts, Steel Cassette Body with 3 Pawls at Triple Angle Engagement for 24T Ratchets |
| SPOKES |
Front 190mm, Rear 186mm, 14 Gauge, Steel |
| NIPPLES |
Brass 14Gx5/8″ |
| RIMS |
Sun Rims Alloy Envy Lite Front 32H 20″x1.5″ No Brake Surface Schrader Valve |
| FRONT TYRE |
Tioga Fastr X 20″x1.85″ 60 TPI Wire Bead |
| REAR TYRE |
Tioga Fastr X 20″x1.65″ 60 TPI Wire Bead |
| TUBES |
20”x1.5″-1.75″ Schrader Valve |
| BRAKES |
Tektro HD-M280 Hydraulic, Resin Pads, 120mm Rotor |
| SADDLE |
ELEVN PC Pivotal |
| SEAT POST |
CHASE Aero Pivotal 27.2x260mmAlloy |
| SEAT CLAMP |
Chase Aero QR Alloy 31.8mm |
| CHAIN TENSIONNER |
Integrated Built-In With New Lock Disc Adaptor |
Fitted with Shimano XT pedals are for photographic purposes only. The bikes comes with nylon platform pedals.
IMPORTANT NOTE: The washers supplied with the EXCESS crank set must be fitted between the pedal and the crank. No after-sales service will be accepted if the washers have not been fitted as of the 1st use.
