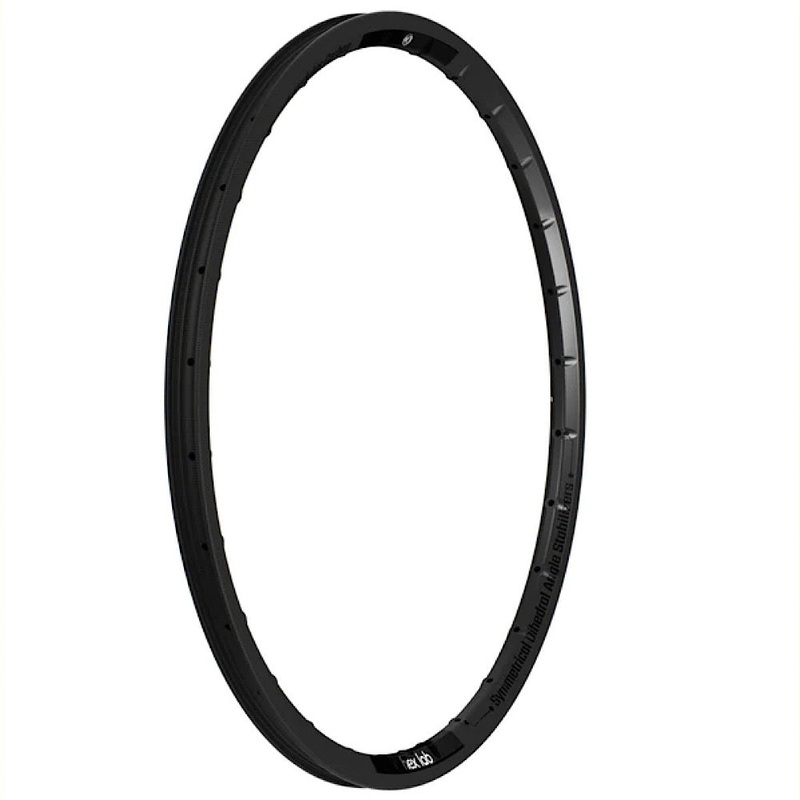

The Hex Lab Carbon BMX Rims are the only rims in the Box line-up to feature Oversized Technology. They also pack Ultra High Modulus Carbon Fiber (stiffer than other carbons variants). Take notice of the unique Symmetrical Dihedral Angle Stabilizers. Yes, its a mouthful but each of those words carries meaning. The sculpted bullet-shaped spoke beds are designed to bridge the angle between the rim’s angled flanks and the vertical plane. With that, we achieve the stability, stiffness, and durability of a much broader rim profile without actually taking on most of the extra material.

Specifications

Material: Ultra High Modulus Carbon Fiber
Process: Vacuum Mold
Hole Drilling: 28
Seam: None
Valve Hole: Presta
Finish: Matte Black with Foil Stamped Chrome Logos
Compatibility:
Tubeless: Tubeless-Ready
Brake:
Rear: Brake
Front: Brake-Less Profiles
Tire Size: 20 x 1″ to 1-3/8″
Size:
Diameter: 20
External Width: 22mm
Internal Width: 15.4mm
ERD: 427mm
ISO (E.T.R.T.O): 451mm (front and rear)
Weight: 299g/ 10.5oz (front and rear)
